Hollow Core Linear Voice Coil Motors, HVCM-051-089-019-01

Housing Outside Diameter, 2.000 inch, 50.8 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length		Through Hole Dia.
HVCM-051-089-019-01	2.25	inch	4.2	lb	13.4	lb	3.50	inch	0.75	inch
Datasheet in PDF	57.2	mm	18.8	N	59.5	N	88.9	mm	19.1	mm

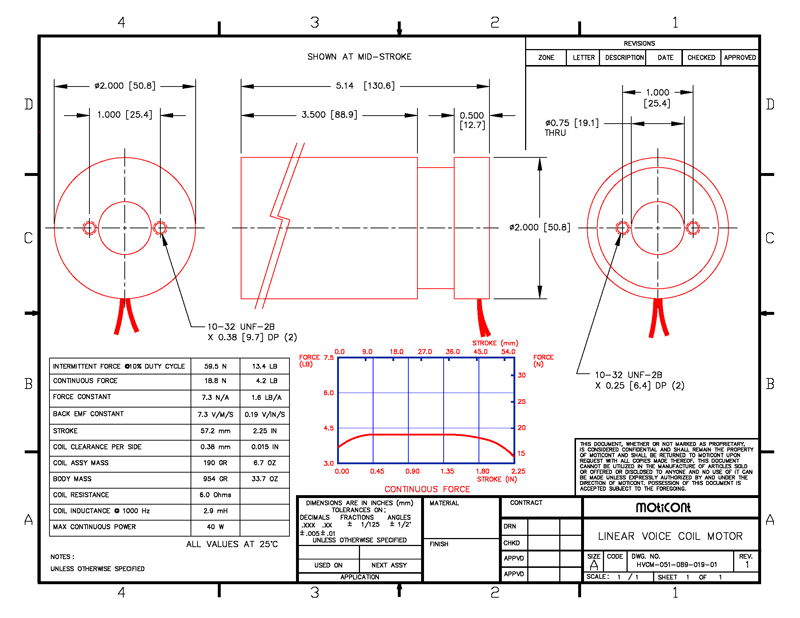

Drawing quick view
