Hollow Core Linear Voice Coil Motors

HVCM-095-038-051-01




Housing Outside Diameter, 3.750 inch, 95.3 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length   Through Hole Dia.
HVCM-095-038-051-01 0.50 inch 15.0 lb 47.5 lb 1.50 inch 2.00 inch
Datasheet in PDF 12.7 mm 66.7 N 211.0 N 38.1 mm 50.8 mm

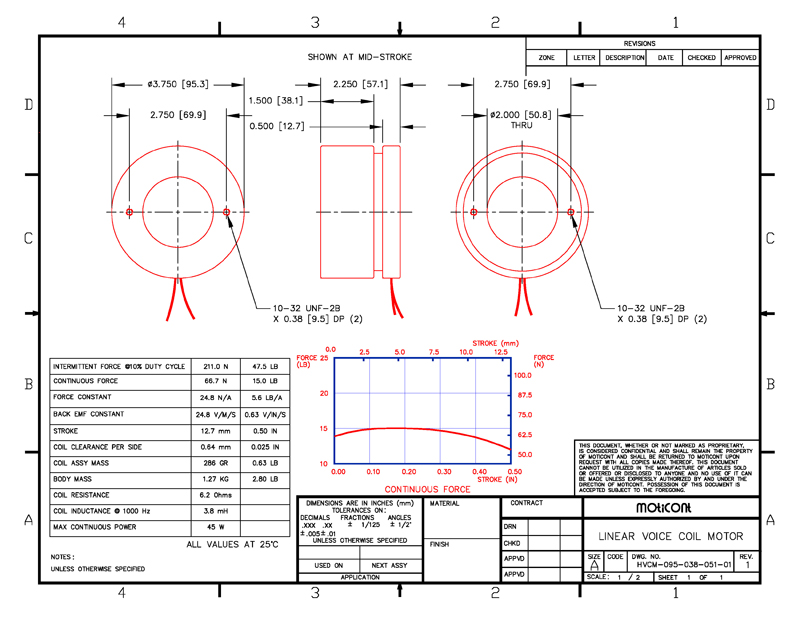

Drawing quick view
