Direct Drive Linear Motors with Built-in Encoder

SDLM-025-070-01-01



Housing Outside Diameter, 1.000 inch, 25.4 mm

Direct Drive Linear Motor SDLM-025-070-01-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
SDLM-025-070-01-01 0.500 inch 21.2 oz 67.0 oz 2.750 inch
Datasheet in PDF 12.7 mm 5.9 N 18.6 N 69.9 mm

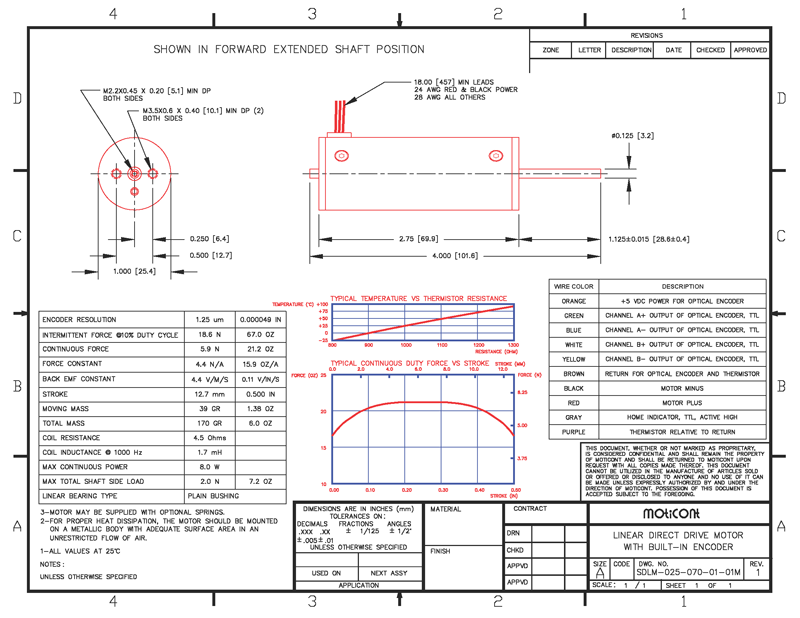

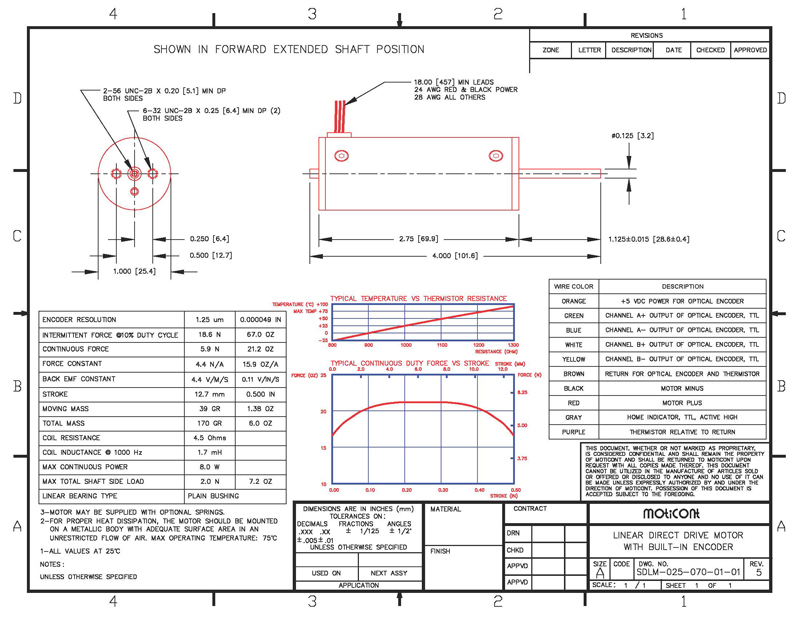

Drawing quick view  Resolution: 1.25 microns
