Direct Drive Linear Motors with Built-in Encoder

SDLM-051-095-01-01



Housing Outside Diameter, 2.000 inch, 50.8 mm

Direct Drive Linear Motor SDLM-051-095-01-01

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
SDLM-051-095-01-01 1.000 inch 7.6 lb 24.1 lb 3.750 inch
Datasheet in PDF 25.4 mm 33.9 N 107.2 N 95.3 mm

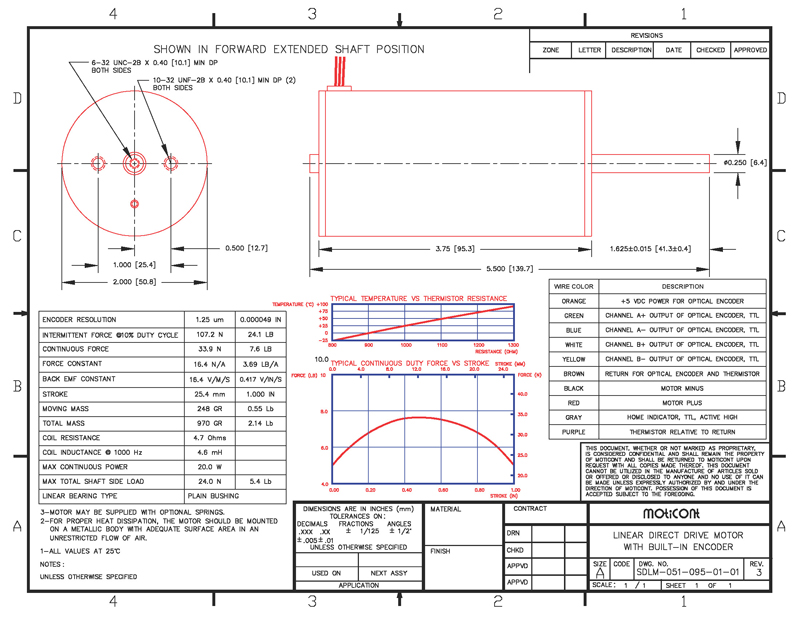

Drawing quick view  Resolution: 1.25 microns
