Motorized Linear Stages, VCDS-032-038-02 Series

Comparison Table



Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 micron
  • Continuous Force: 1.9 lb (8.3 N)
  • Intermittent Force: 5.9 lb (26.1 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
VCDS-032-038-02-B1-01
Enlarge
Datasheet in PDF
Drawing quick view





Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 1.9 lb (8.3 N)
  • Intermittent Force: 5.9 lb (26.1 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
VCDS-032-038-02-B1-30
Enlarge
Datasheet in PDF
Drawing quick view




Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 micron
  • Continuous Force: 1.9 lb (8.3 N)
  • Intermittent Force: 5.9 lb (26.1 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04

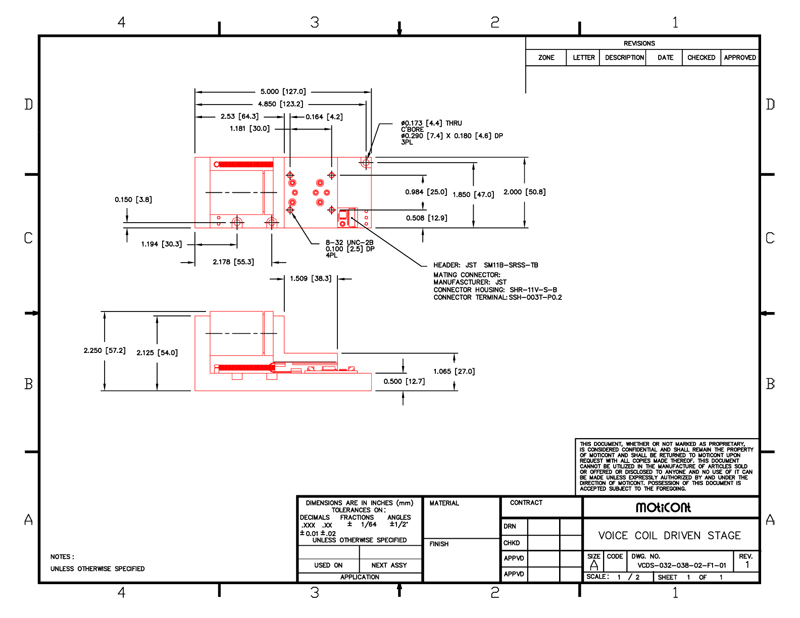

VCDS-032-038-02-F1-01
Enlarge
Datasheet in PDF
Drawing quick view





Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 1.9 lb (8.3 N)
  • Intermittent Force: 5.9 lb (26.1 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
VCDS-032-038-02-F1-30

Enlarge
Datasheet in PDF
Drawing quick view
