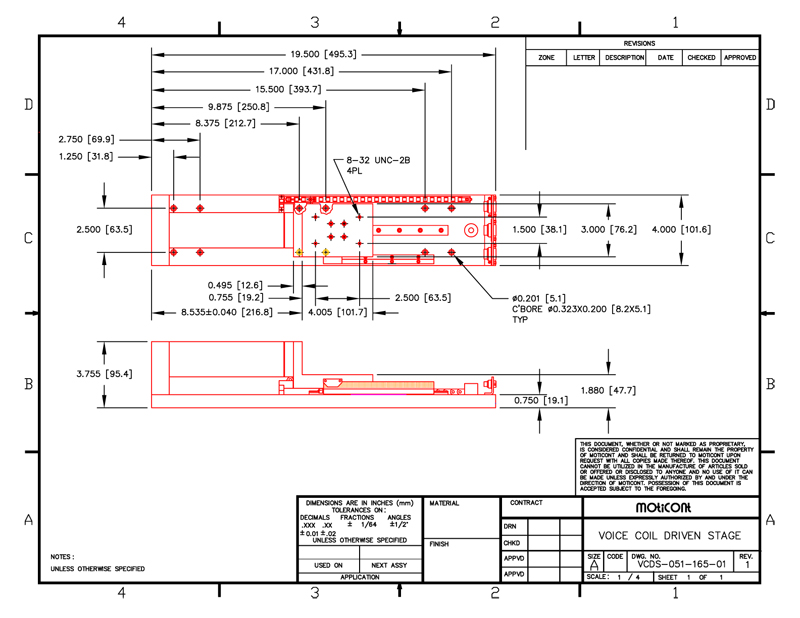

Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

• Range of Motion: 5.20” (132.1 mm)
• Positioning Resolution: 1 microns
• Continuous Force: 4.8 lb (21.5 N)
• Intermittent Force: 15.3 lbs (68.1 N) at 10% duty cycle
• Optional Return Spring
• Linear Ball Bearing
• Quadrature Optical Encoder with Differential Outputs
• Built-in Home Switch

Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

• Range of Motion: 5.20” (132.1 mm)
• Positioning Resolution: 12.7 microns
• Continuous Force: 4.8 lb (21.5 N)
• Intermittent Force: 15.3 lbs (68.1 N) at 10% duty cycle
• Optional Return Spring
• Linear Ball Bearing
• Quadrature Optical Encoder with Differential Outputs
• Built-in Home Switch

Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

• Range of Motion: 5.20” (132.1 mm)
• Positioning Resolution: 25.4 microns
• Continuous Force: 4.8 lb (21.5 N)
• Intermittent Force: 15.3 lbs (68.1 N) at 10% duty cycle
• Optional Return Spring
• Linear Ball Bearing
• Quadrature Optical Encoder with Differential Outputs
• Built-in Home Switch

Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

• Range of Motion: 5.20” (132.1 mm)
• Positioning Resolution: 29.95 microns
• Continuous Force: 4.8 lb (21.5 N)
• Intermittent Force: 15.3 lbs (68.1 N) at 10% duty cycle
• Optional Return Spring
• Linear Ball Bearing
• Quadrature Optical Encoder with Differential Outputs
• Built-in Home Switch
