Linear Motor with Internal Shaft & Bearing, GVCM-051-089-01

Housing Outside Diameter, 2.000 inch, 50.8 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-051-089-01S06	2.25	inch	5.9	lb	18.6	lb	3.50	inch
Datasheet in PDF	57.2	mm	26.2	N	82.7	N	88.9	mm

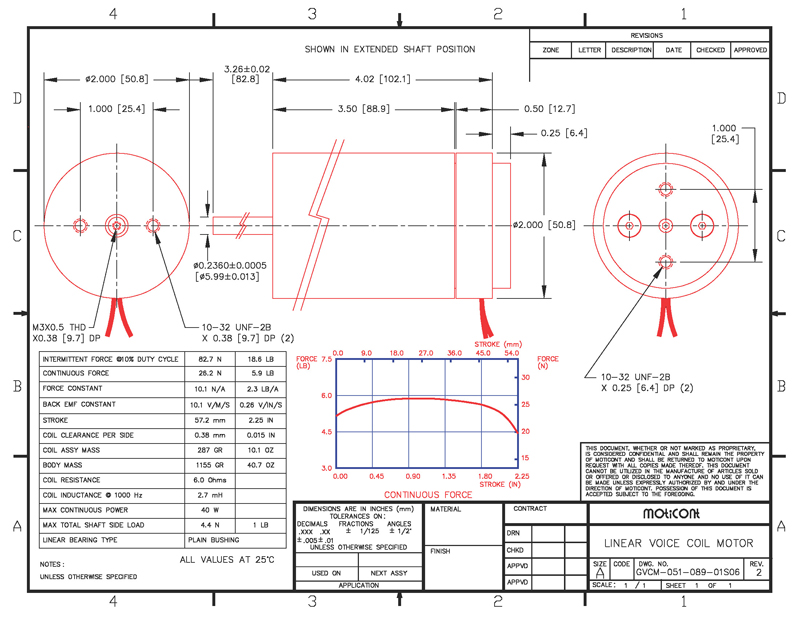

Drawing quick view
