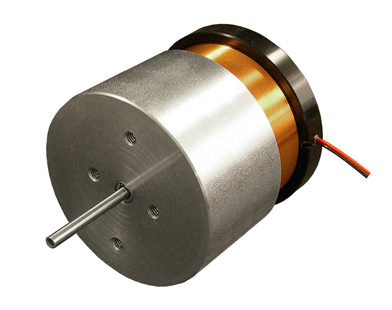

Linear Motor with Internal Shaft & Bearing, GVCM-070-038-01

Housing Outside Diameter, 2.750 inch, 69.9 mm


Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-070-038-01	0.50	inch	14.5	lb	45.9	lb	1.50	inch
Datasheet in PDF	12.7	mm	64.5	N	204.2	N	38.1	mm

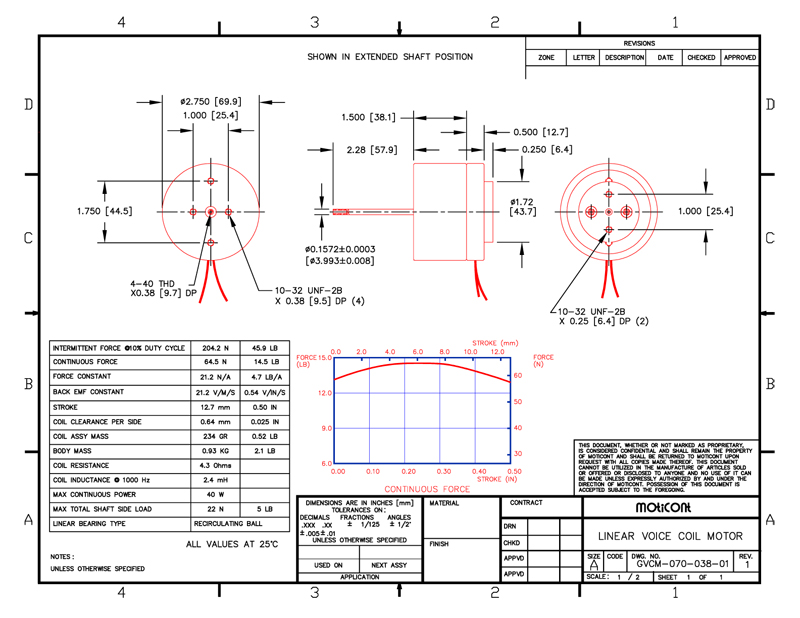

Drawing quick view
