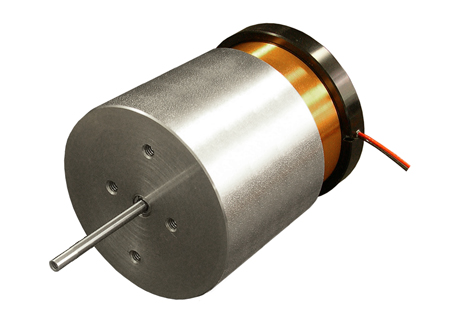

Linear Motor with Internal Shaft & Bearing, GVCM-070-051-01

Housing Outside Diameter, 2.750 inch, 69.9 mm


Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-070-051-01	1.00	inch	14.6	lb	46.0	lb	2.00	inch
Datasheet in PDF	25.4	mm	70.0	N	204.7	N	50.8	mm

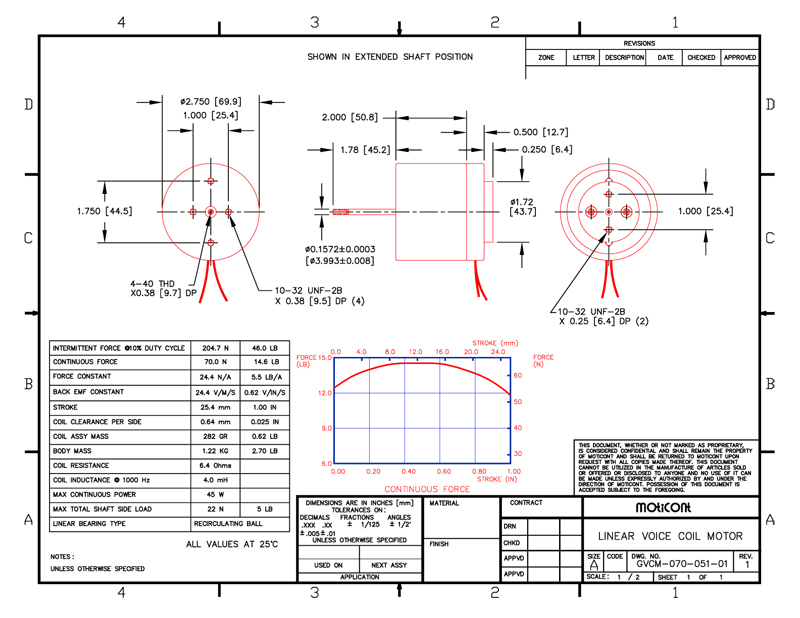

Drawing quick view
