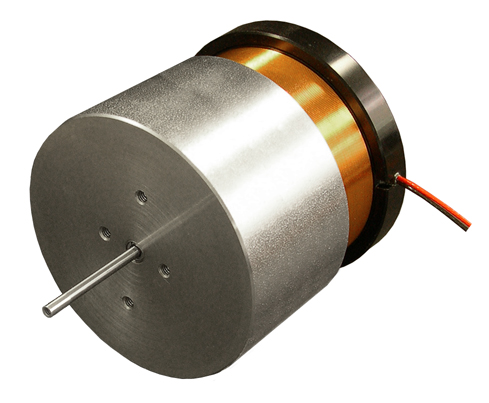

Linear Motor with Internal Shaft & Bearing, GVCM-095-051-01

Housing Outside Diameter, 3.750 inch, 95.3 mm


Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-095-051-01	1.00	inch	23.5	lb	74.0	lb	2.00	inch
Datasheet in PDF	25.4	mm	104.6	N	329.3	N	50.8	mm

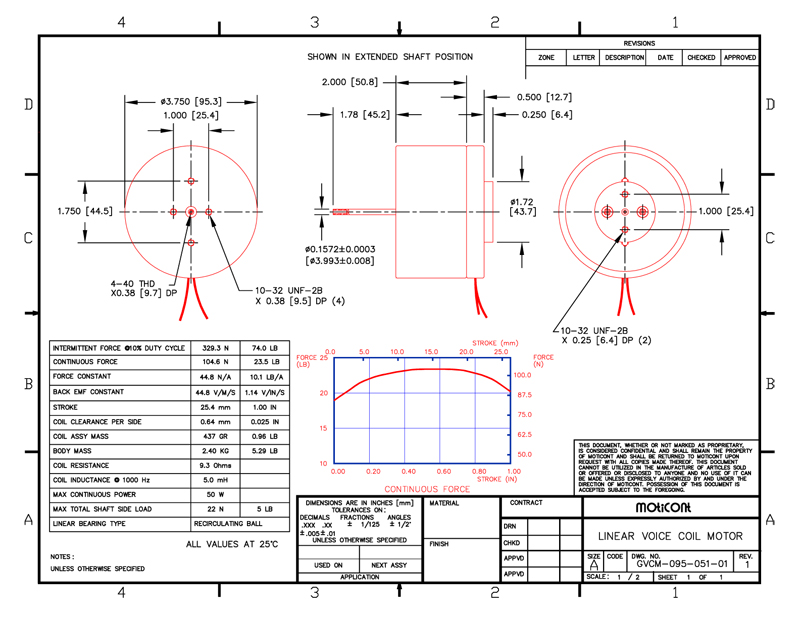

Drawing quick view
