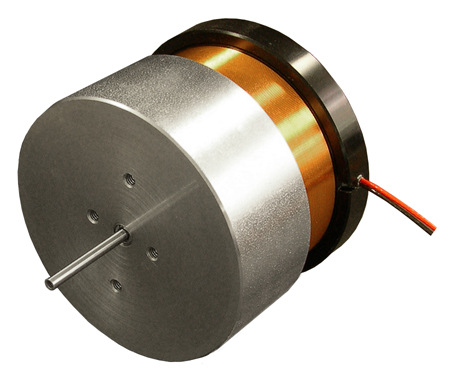

Linear Motor with Internal Shaft & Bearing, GVCM-095-038-01

Housing Outside Diameter, 3.750 inch, 95.3 mm


Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-095-038-01	0.50	inch	23.1	lb	73.1	lb	1.50	inch
Datasheet in PDF	12.7	mm	102.8	N	325.3	N	38.1	mm

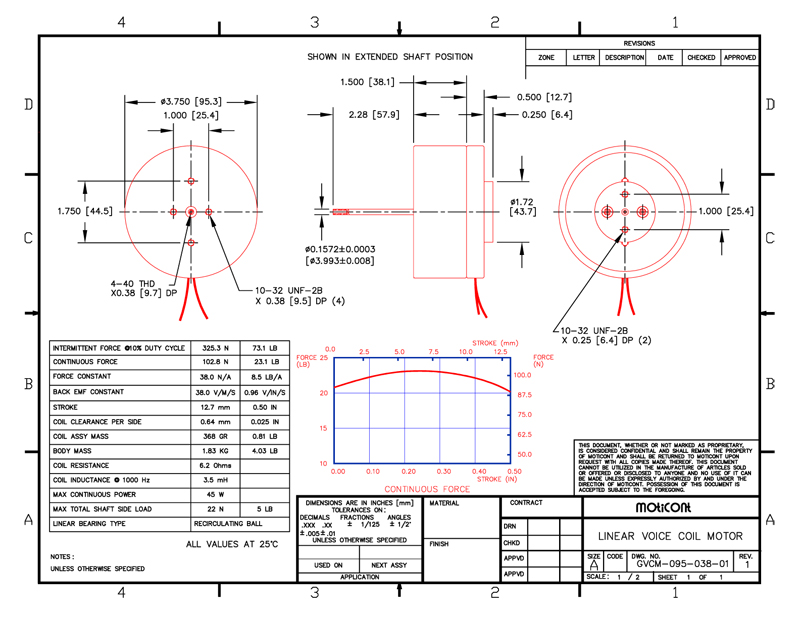

Drawing quick view
