Linear Motor, LVCM-019-032-02

Housing Outside Diameter, 0.750 inch, 19.1 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-019-032-02	0.875	inch	8.1	oz	25.7	oz	1.250	inch
Datasheet in PDF	22.2	mm	2.3	N	7.2	N	31.8	mm

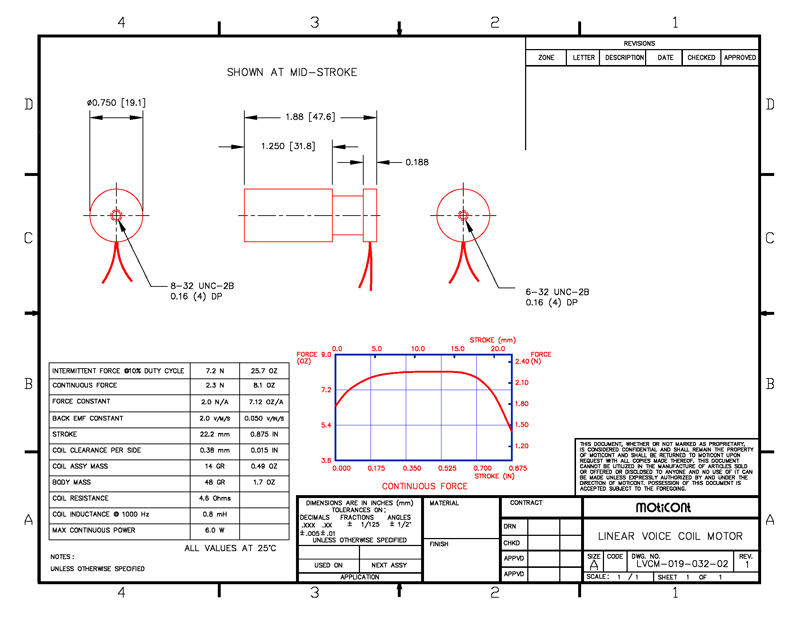

Drawing quick view
