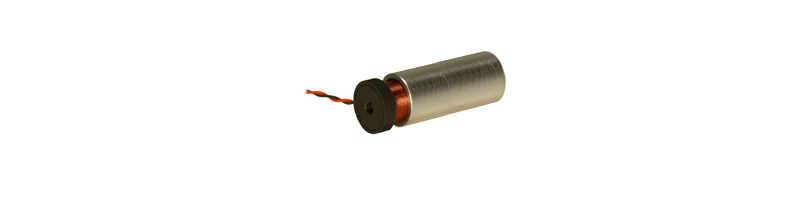

Linear Voice Coil Motor

LVCM-019-048-02



Housing Outside Diameter, 0.750 inch, 19.1 mm
Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-019-048-02 1.5 inch 7.4 oz 23.5 oz 1.875 inch
Datasheet in PDF 38.1 mm 2.1 N 6.5 N 47.6 mm

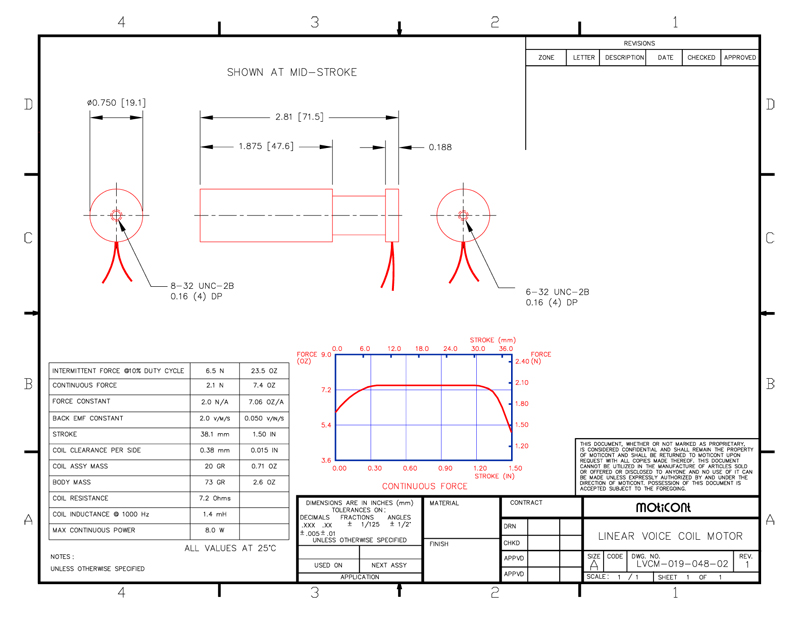

Drawing quick view
