Linear Voice Coil Motor

LVCM-025-038-01



Housing Outside Diameter, 1.000 inch, 25.4 mm
Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-025-038-01 0.37 inch 2.5 lb 7.8 lb 1.50 inch
Datasheet in PDF 9.5 mm 11.0 N 34.7 N 38.1 mm

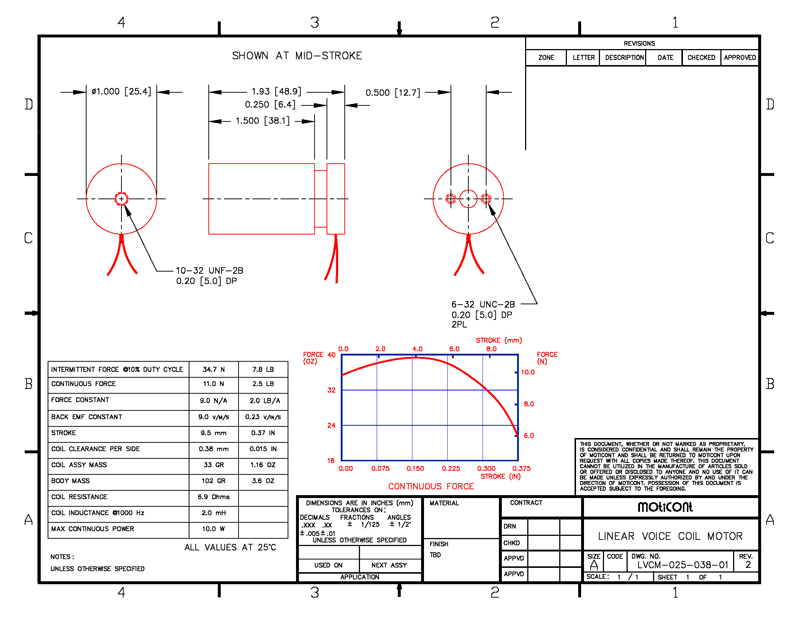

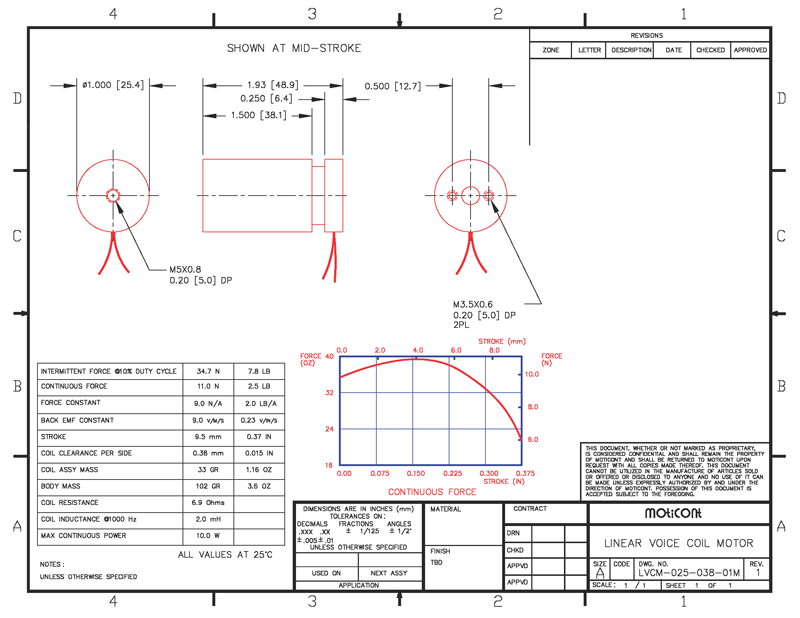

Drawing quick view
