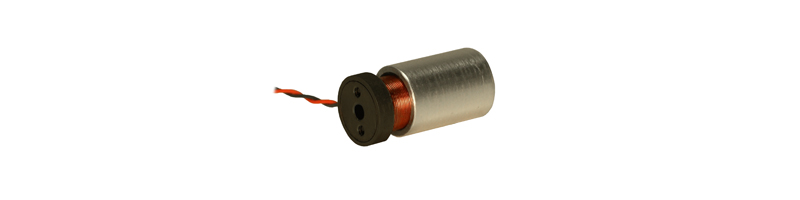

Linear Voice Coil Motor

LVCM-025-038-02



Housing Outside Diameter, 1.000 inch, 25.4 mm
Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-025-038-02 1.00 inch 16.4 oz 51.9 oz 1.50 inch
Datasheet in PDF 25.4 mm 4.6 N 14.4 N 38.1 mm

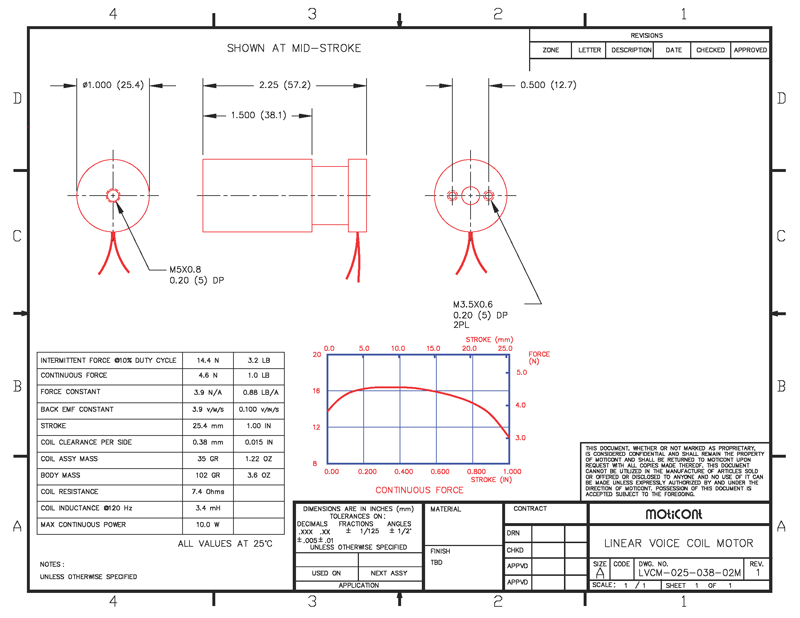

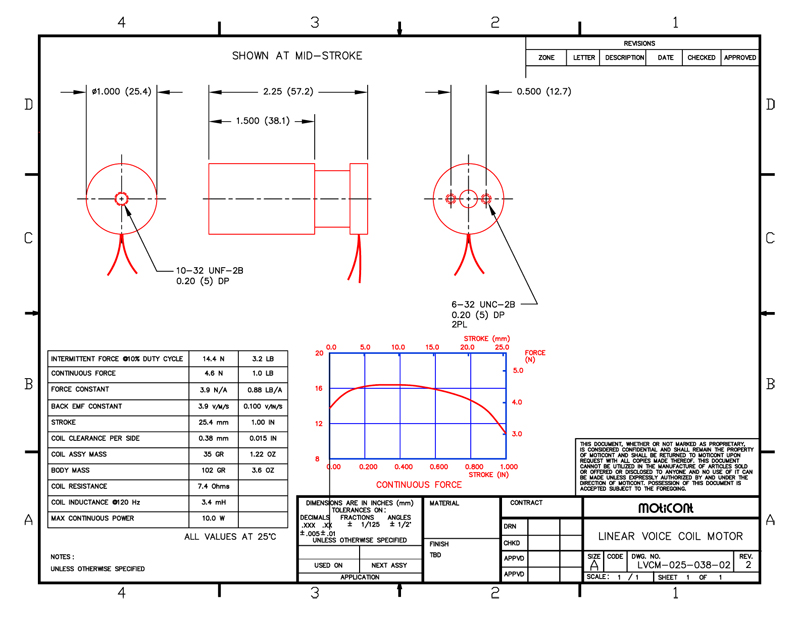

Drawing quick view
