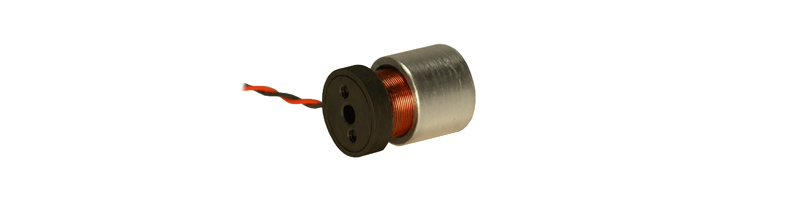

Linear Voice Coil Motor

LVCM-032-025-02



Housing Outside Diameter, 1.250 inch, 31.8 mm
Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-032-025-02 0.50 inch 2.1 lb 6.6 lb 1.00 inch
Datasheet in PDF 12.7 mm 9.3 N 29.3 N 25.4 mm

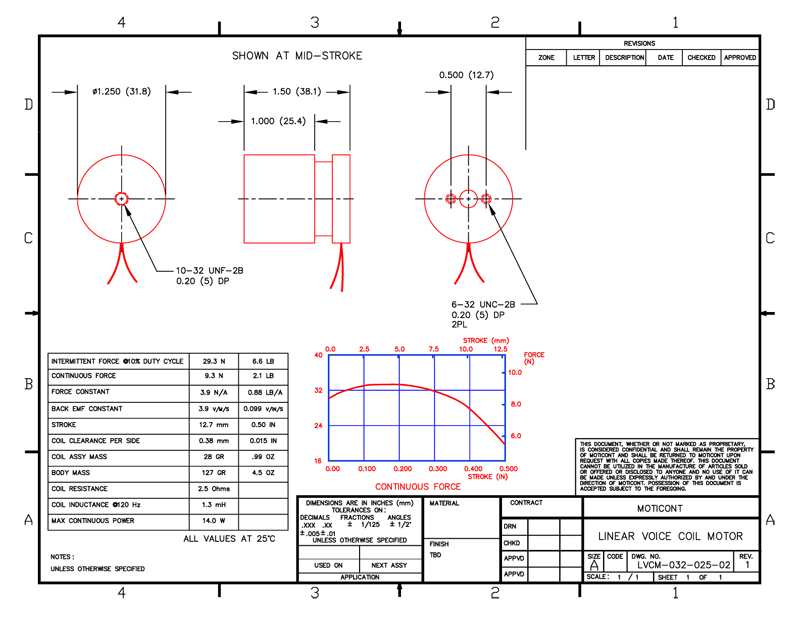

Drawing quick view
