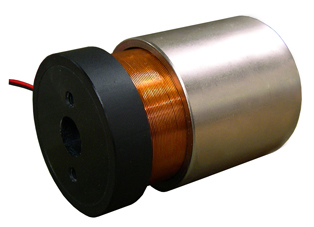

Linear Voice Coil Motor

LVCM-051-051-01



Housing Outside Diameter, 2.000 inch, 50.8 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-051-051-01 0.75 inch 6.3 lb 19.9 lb 2.00 inch
Datasheet in PDF 19.1 mm 28.0 N 88.6 N 50.8 mm

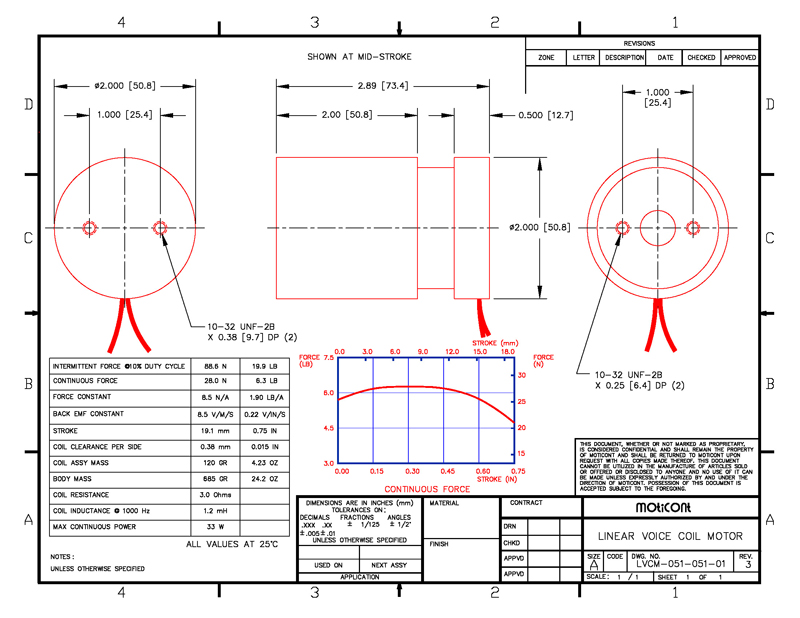

Drawing quick view
