Linear Motor, LVCM-051-051-05

Housing Outside Diameter, 2.000 inch, 50.8 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-051-051-05	1.00	inch	6.6	lb	20.8	lb	2.00	inch
Datasheet in PDF	25.4	mm	29.3	N	92.6	N	50.8	mm

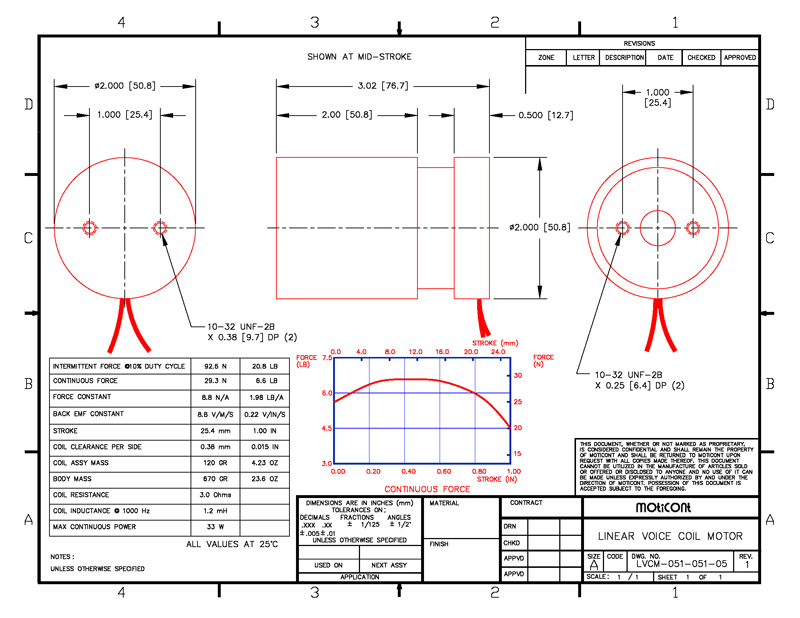

Drawing quick view
