Linear Voice Coil Motor, LVCM-051-165-01

Housing Outside Diameter, 2.000 inch, 50.8 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-051-165-01	5.25	inch	4.8	lb	15.3	lb	6.50	inch
Datasheet in PDF	133.4	mm	21.5	N	68.1	N	165.1	mm

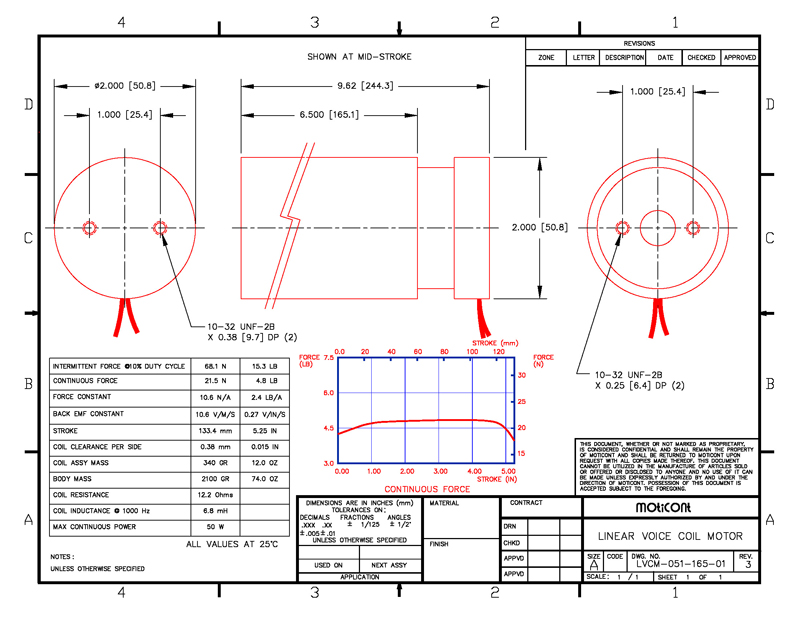

Drawing quick view
