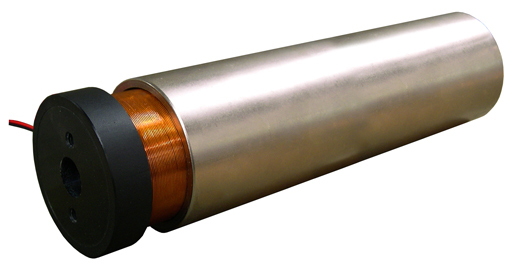

Linear Voice Coil Motor, LVCM-051-165-02

Housing Outside Diameter, 2.000 inch, 50.8 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-051-165-02	2.50	inch	13.4	lb	42.3	lb	6.50	inch
Datasheet in PDF	63.5	mm	59.4	N	187.8	N	165.1	mm

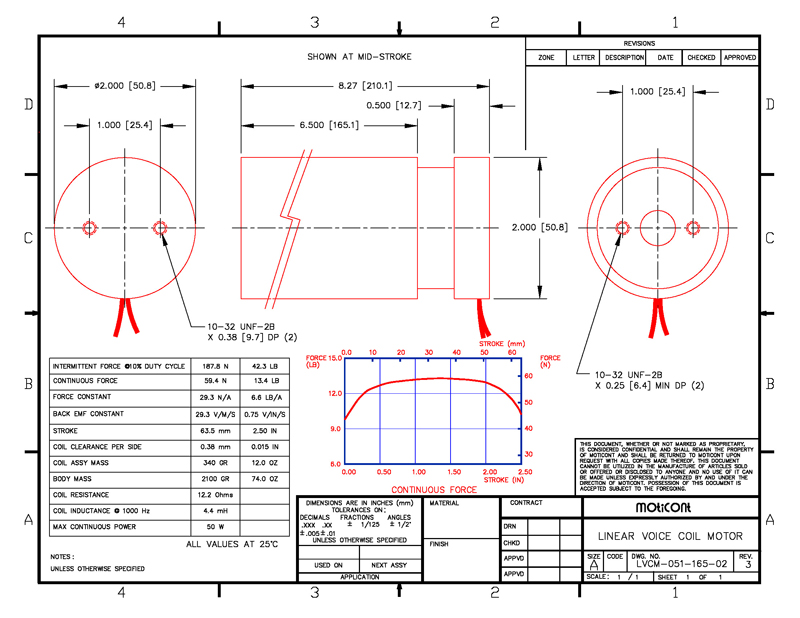

Drawing quick view
