Linear Voice Coil Motor, LVCM-051-165-03

Housing Outside Diameter, 2.000 inch, 50.8 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-051-165-03	1.00	inch	26.5	lb	83.8	lb	6.50	inch
Datasheet in PDF	25.4	mm	117.7	N	372.3	N	165.1	mm

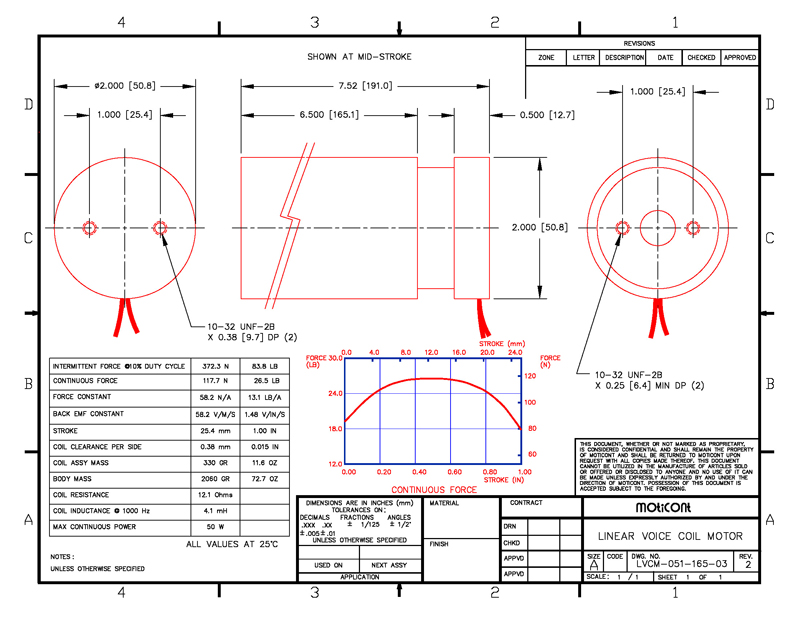

Drawing quick view
