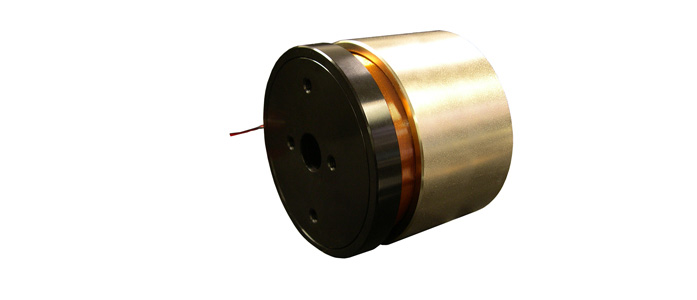

Linear Voice Coil Motor

LVCM-070-038-01



Housing Outside Diameter, 2.750 inch, 69.9 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-070-038-01 0.50 inch 14.5 lb 45.9 lb 1.50 inch
Datasheet in PDF 12.7 mm 64.6 N 204.4 N 28.6 mm

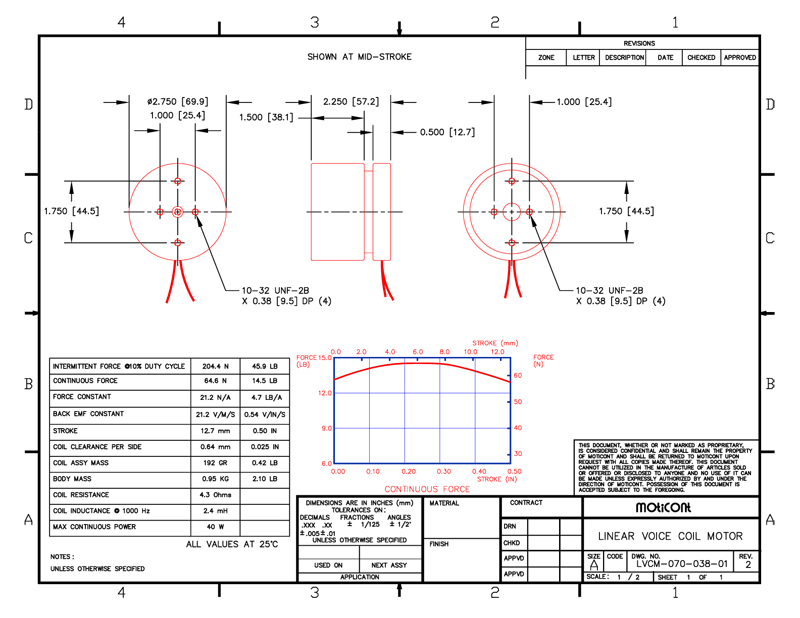

Drawing quick view
