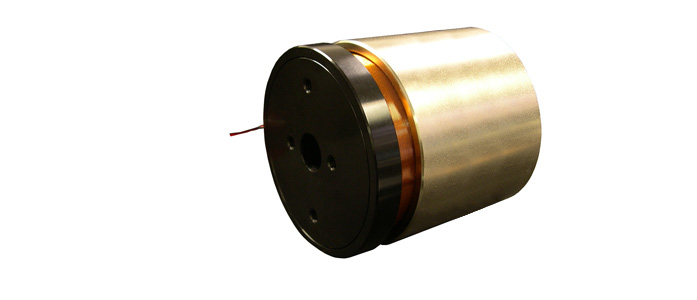

Linear Voice Coil Motor

LVCM-070-051-01



Housing Outside Diameter, 2.750 inch, 69.9 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-070-051-01 1.00 inch 14.6 lb 46.0 lb 2.00 inch
Datasheet in PDF 25.4 mm 64.7 N 204.3 N 50.8 mm

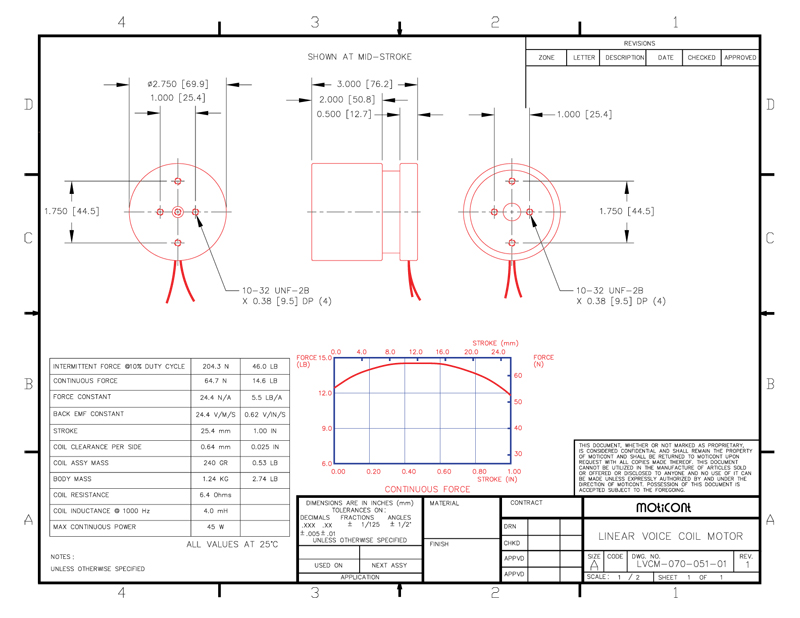

Drawing quick view
