Linear Voice Coil Motor

LVCM-070-064-01



Housing Outside Diameter, 2.750 inch, 69.9 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-070-064-01 1.50 inch 14.4 lb 45.5 lb 2.50 inch
Datasheet in PDF 38.2 mm 64.0 N 202.0 N 63.5 mm

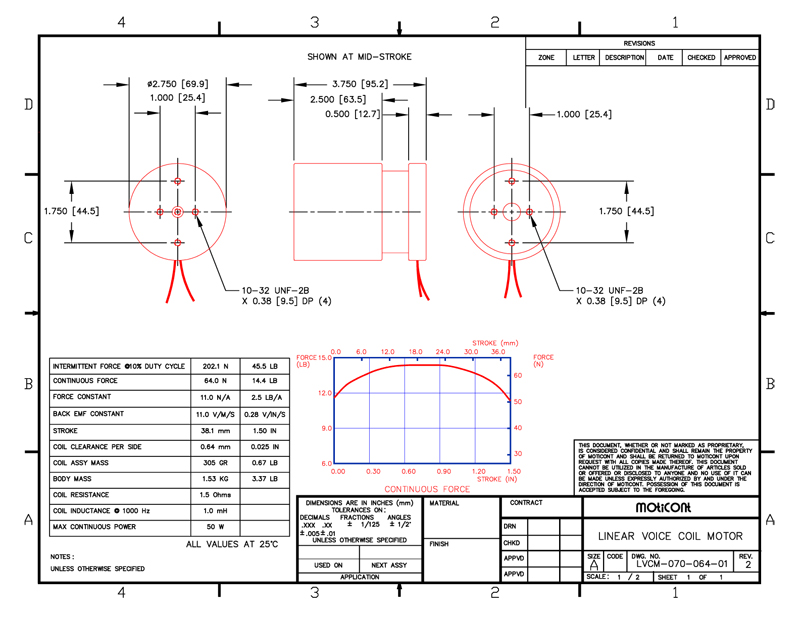

Drawing quick view
