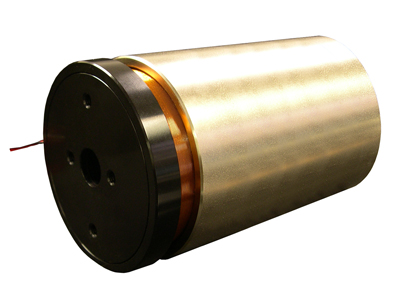

Linear Voice Coil Motor

LVCM-070-089-01



Housing Outside Diameter, 2.750 inch, 69.9 mm

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-070-089-01 2.50 inch 14.1 lb 44.6 lb 3.50 inch
Datasheet in PDF 63.5 mm 62.8 N 198.3 N 88.9 mm

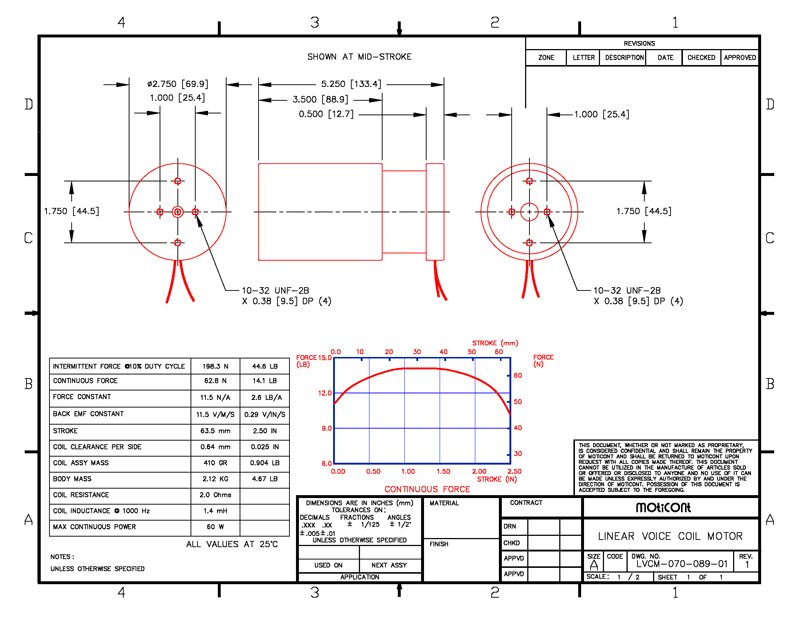

Drawing quick view
