Linear Motor, LVCM-070-089-02

Housing Outside Diameter, 2.750 inch, 69.9 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-070-089-02	1.00	inch	33.9	lb	107.1	lb	3.50	inch
Datasheet in PDF	25.4	mm	150.7	N	476.3	N	88.9	mm

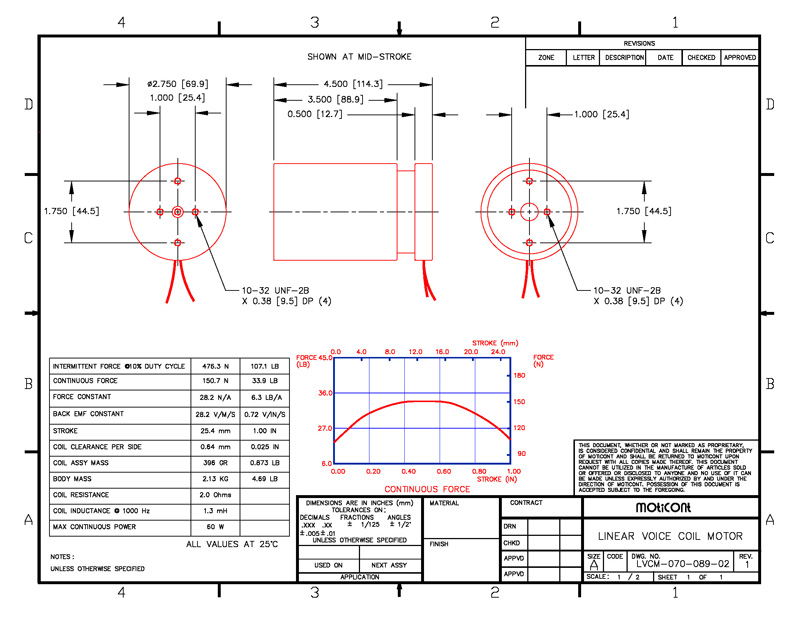

Drawing quick view
