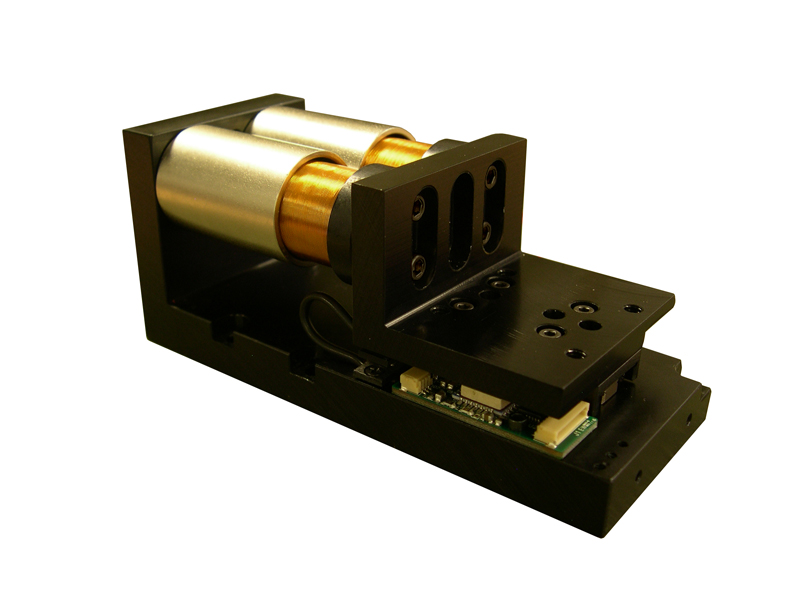

Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch
- Range of Motion: 0.97” (24.6 mm)
- Positioning Resolution: 29.95 microns
- Continuous Force: 2.0 lb (9.2 N)
- Intermittent Force: 6.4 lb (28.8 N) at 10% duty cycle
- Optional Return Spring
- Linear Ball Bearing
- Quadrature Optical Encoder with Differential Outputs
- Built-in Home Switch
Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
|
